Remarque: cet appareil ne peut pas fonctionner aux États-Unis, au Canada,
G202-4G-EU Convient aux pays européens, à l’Europe de l’Est et à la Russie, aux pays d’Asie du Sud-Est, d’Asie centrale et du Moyen-Orient, d’Afrique,
G202-4G-AU adapté pour le Chili, Austrilia, Nouvelle-Zélande, Colombie, Argentine, Mexique,.
Veuillez noter.

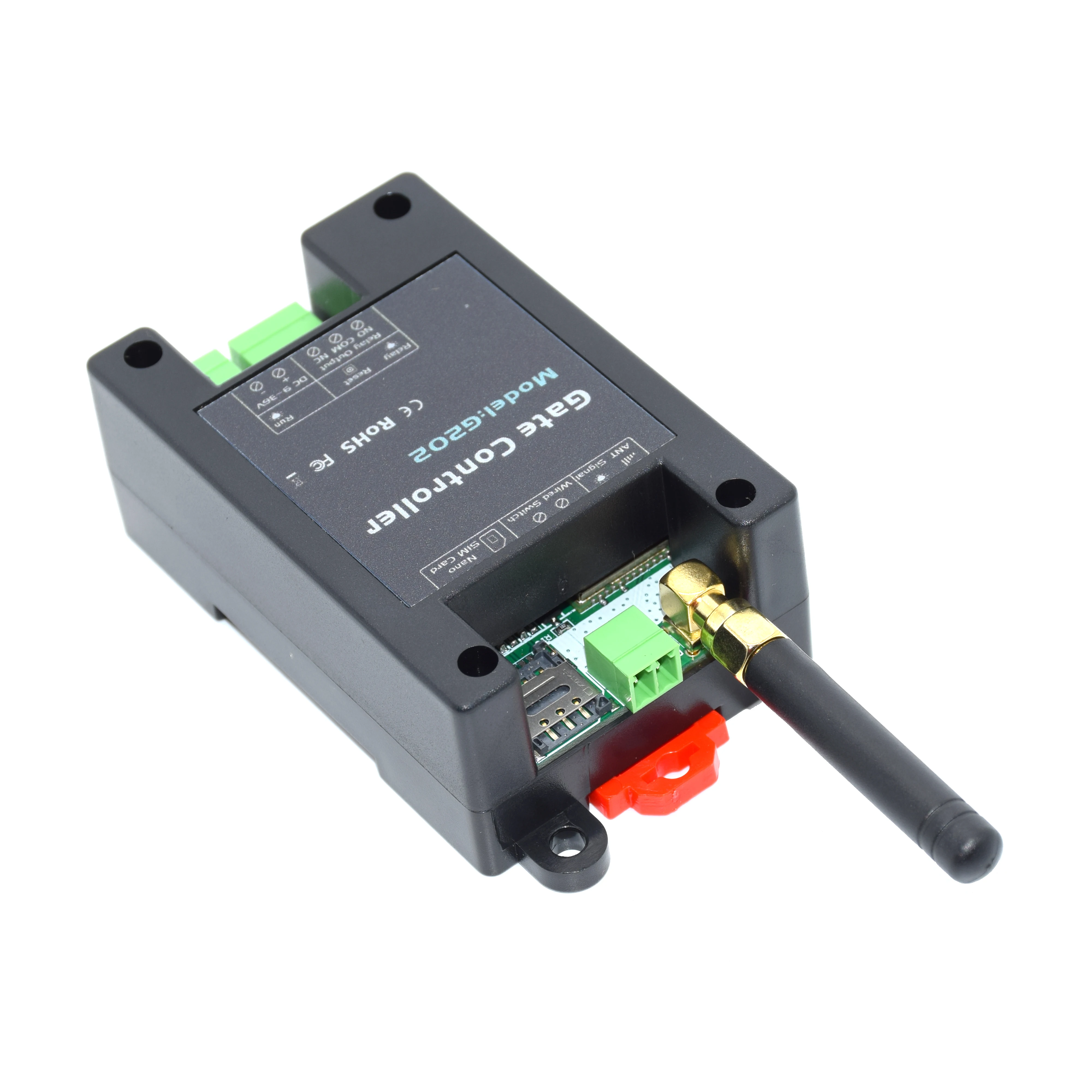

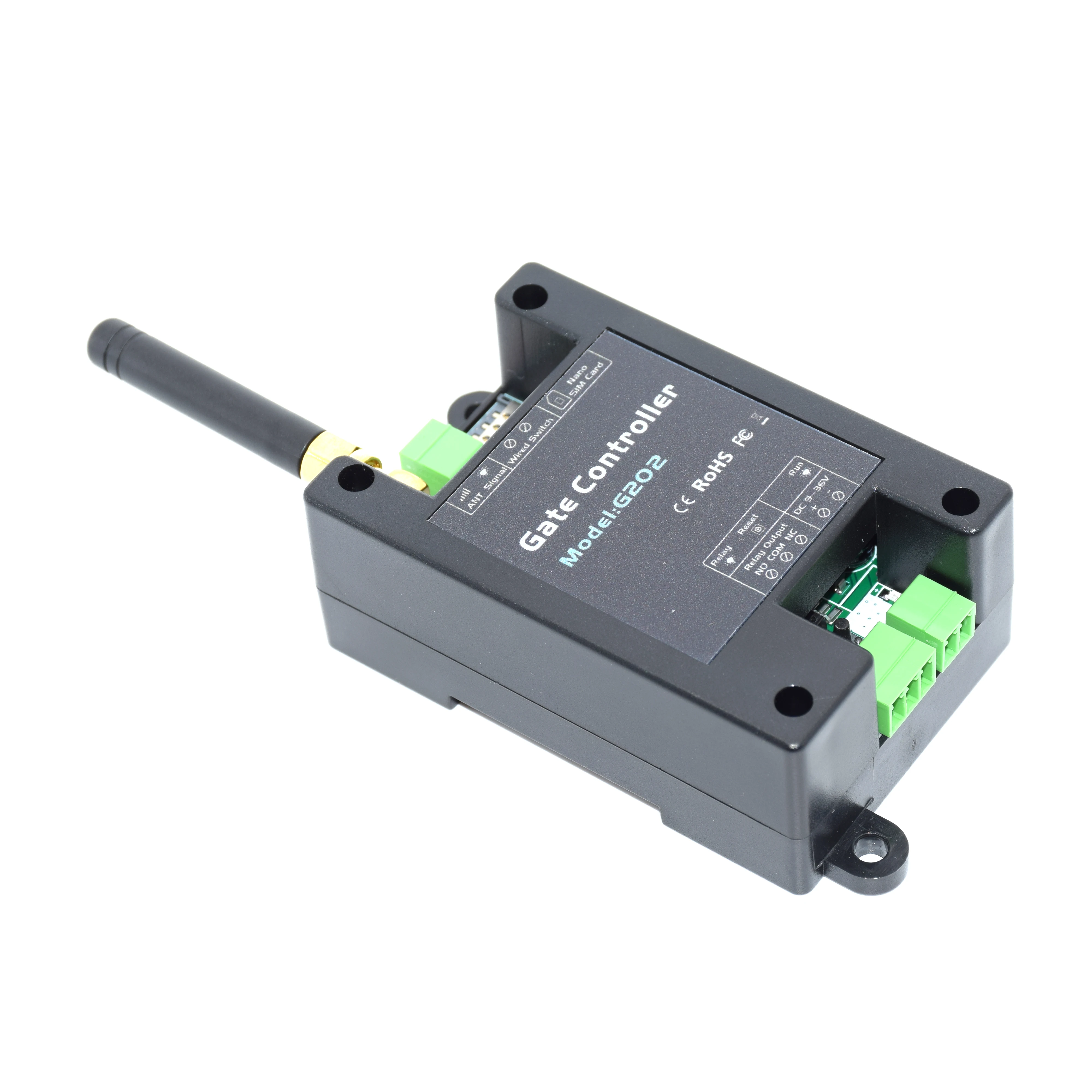

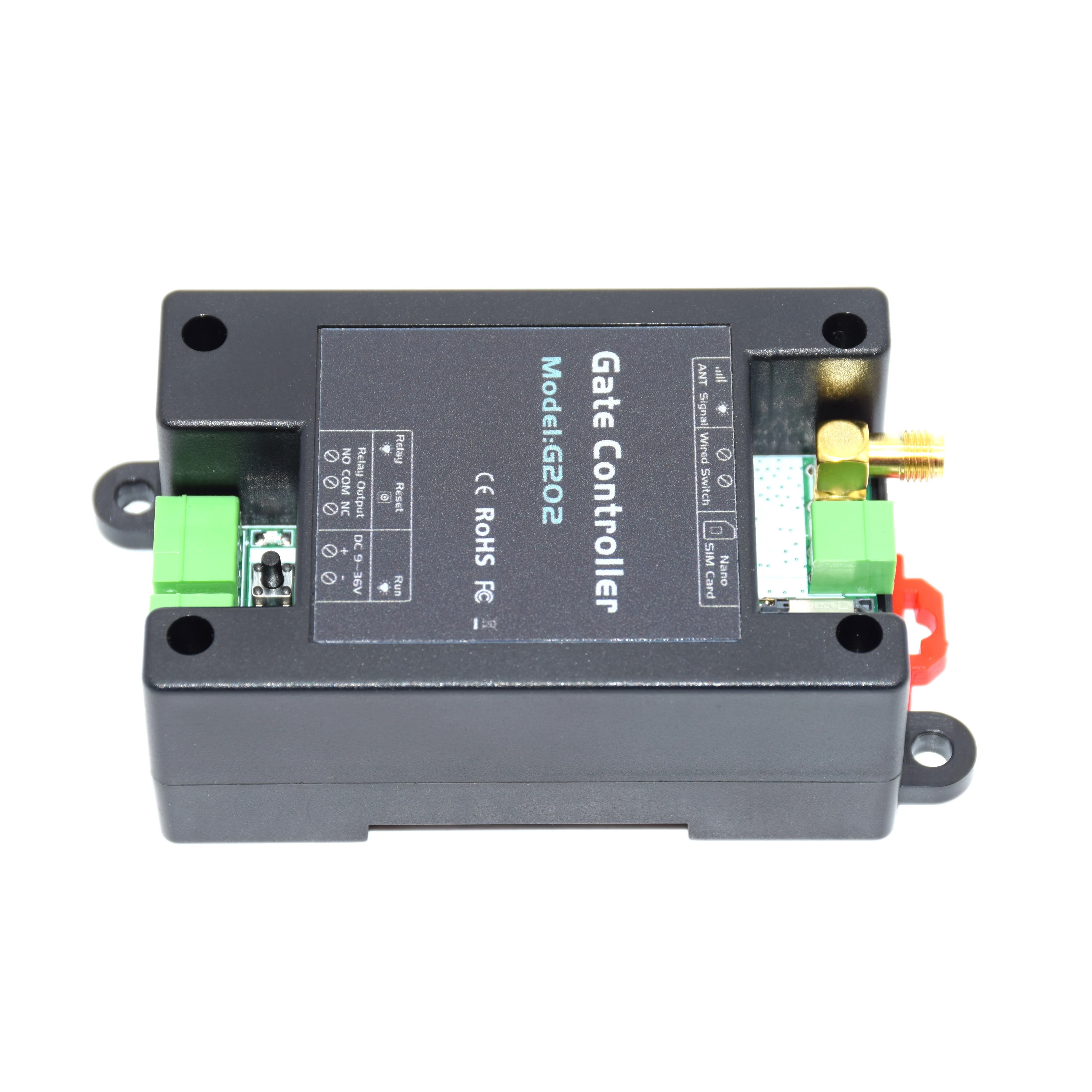

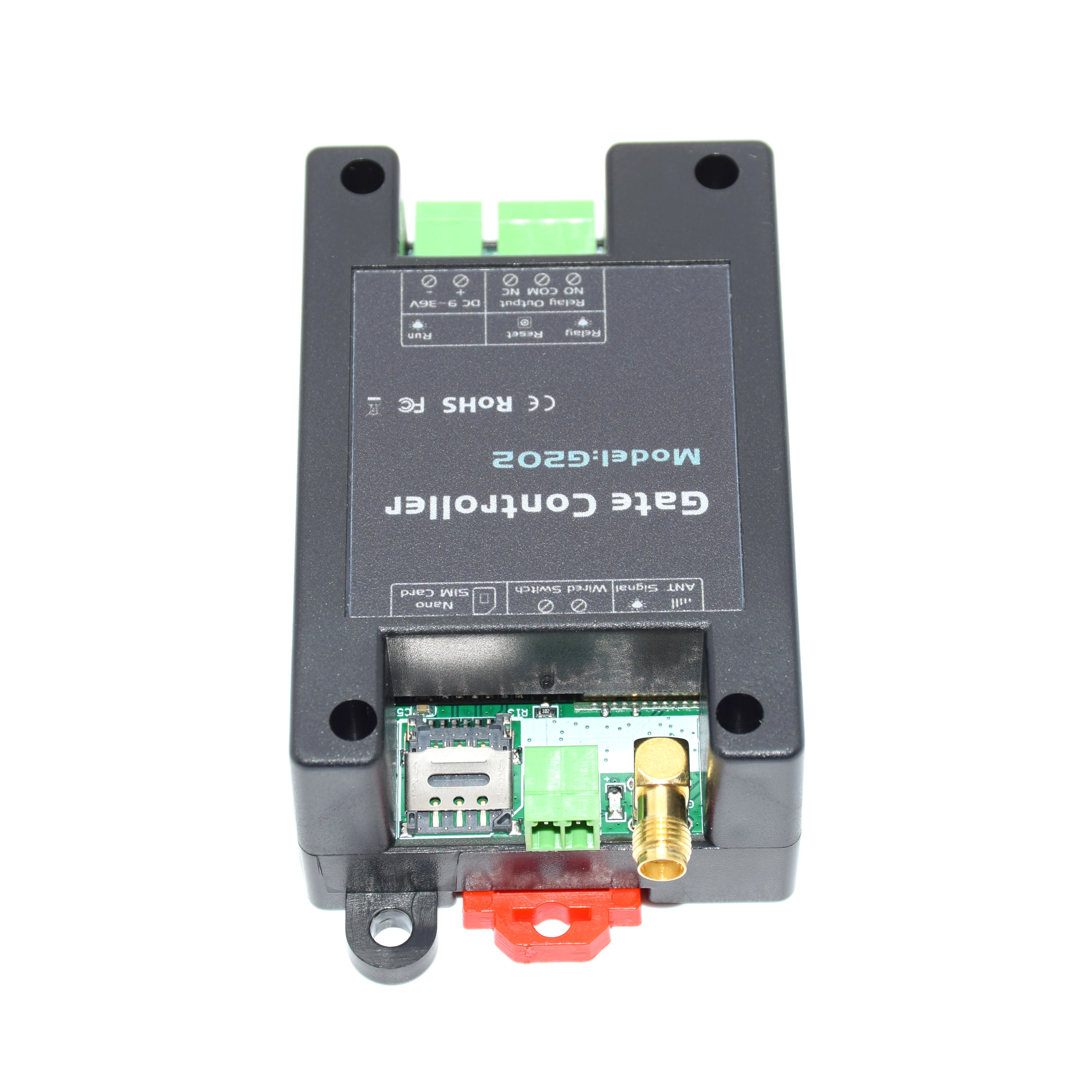

L’ouvreur G202 de porte de GSM/4G est un dispositif très simple qui peut être utilisé pour l’accès autorisé de porte, les portes de contrôle, commutation d’équipement à distance, systèmes de stationnement de voiture. En fait, l’ouvre-porte GSM/4G G202 peut être utilisé dans des endroits qui nécessite d’allumer/éteindre votre système, machines, équipement à distance avec un appel gratuit depuis votre téléphone portable et protéger vos actifs.
Il suffit de composer le numéro d’utilisateur autorisé, puis la barrière et les portes sont ouvertes, ou la machine est allumée ou éteinte par l’ouvre-porte GSM/4G. Il n’y a pas de frais d’appel, l’ouvreur de porte GSM/4G rejette l’appel du numéro autorisé puis effectue l’action de mise en marche/arrêt.
Spécifications techniques
Tension nominale: DC 9V ~ 36V/1A
Température de fonctionnement: -10 ℃ ~ + 60 ℃
Température de stockage: -20 ℃ ~ + 60 ℃
Humidité relative: 10-90%, pas de condensation
Fréquence de travail:
2G: GSM: 850/900/1800/1900MHz
4G:
4G-C:GSM/4G:900/1800, LTE-FDD B1/B3/B5/B8 LTE-TDD:B34/B38/B39/B40/B41
4G-E:GSM/4G:900/1800,LTE-FDD B1/B3/B5/B7/B8/B20
4G-SA:GSM/4G: 850/900/1800/1900MHz LTE-FDD B1/B3/B5/B7/B8/B28/B66
Protocole de communication: GSM/4G PHASE 2/2 + (service de données inclus)
Tension associée du relais de sortie: 3A/240V AC
Carte SIM: type Nano, 3V
Antenne: 50 Ω SMA
Commutateur filaire: prend en charge
Attention: cet appareil ne prend en charge que la 2G/4G, la 4G est compatible avec la 2G, mais ne prend pas en charge la 3G.
Caractéristiques
1. Aucun frais d’appel. L’ouvreur de porte GSM/4G rejette l’appel du numéro autorisé, puis le relais se tournera
ON/OFF sur le premier anneau;
2. Il n’est plus traditionnel d’ouvrir la porte, mais il est plus intéressant de secouer le téléphone portable pour déverrouiller la porte.
3. Applications multiples (portes, bornes, barrières, portes de garage, volets et portes d’accès ou machines);
4. sécurisé-en utilisant l’identification de l’appelant pour l’identification, les appelants inconnus sont ignorés;
5. Peut être utilisé de n’importe où, sans limite de distance;
6. Ajouter ou supprimer des utilisateurs par la commande SMS Text;
7. Pas besoin de fournir une télécommande pour différents utilisateurs;
8. Jusqu’à 200 numéros de téléphone autorisés peuvent être configurés;
9. Une sortie avec relais (3A/240VAC) pour connecter l’interrupteur de la porte ou des machines;
10. L’action de relais renverra une confirmation SMS au propriétaire, cette fonction est modifiable par l’utilisateur;
11. Basé sur le réseau GSM/4G, appliqué à de nombreuses applications.
И***ч –
Everything works, I didn’t take a photo, SIM Beeline tariff is a second. I will attach the instruction on the Russian.
И***ч –
Г***ч –
Works in our network, I have docked everything with Dorhan,👍
Г***ч –
H***d –
I haven’t used it yet.
To use it to control the water pump.
H***d –
А***н –
Everything was installed and connected to the doorhan automatic garage doors, sorted out quickly enough, connected with the SIM Beeline, now you do not need to carry the remote with you. Only two jambs: when dialing, the answering machine is turned on, that the subscriber cannot answer and the second: an SMS arrives that the subscriber is back online. How to disable it yet could not find. At other gates, when dialing, the call is simply reset and there is no answering machine, that the subscriber cannot answer, although another GSM module is installed there, and SIM cards and tariffs are the same.
А***н –
O***E –
It is not the first time that I buy, they work well, the seller is an excellent technical support, he helps me whenever I have doubts. I recommend it.
Thank you very much
O***E –
С***ч –
The goods arrived quickly. Connected and checked the work. Everything is OK. Thank you seller! I advise this seller.
С***ч –
З***ч –
The seller is great! The first time a defective product came, the module did not accept SMS from any operator, although it showed that it was online. After a short communication with the seller, he sent another module. Everything has worked! I recommend the seller!
З***ч –
g***a –
A product under trial, OK compared to its price, thanks to the seller Thanks product under trial, OK compared to its price, thanks to the seller Thanks
g***a –
b***i –
Great top service, fast and very good material, thank you to all the team.
b***i –
M***f –
Thanks the order arrived as in the description gorgeous
M***f –
г***ч –
I’ll check it, I arrived quickly, all included
г***ч –
G***a –
Very huen product, for chili with wom works perfect!
G***a –
K***r –
Everything is completely cool. Delivery immediately and without problems
K***r –
T***a –
Great product, i’ll definatelly buy more of this.
T***a –
g***n –
The goods of the priysher of the new-bought thermina, such a yak zamovlya.
g***n –
М***ч –
Everything works. Sim beeline. For dumb as I’m an instruction. I didn’t buy power from the Automation (drive) of the gate. Alutech levigato lg-600f I have such a drive. From the device pads no wire cling to the SBS Gate Drive pad. The second wire from the pad of the com device is hooked to the GND Drive pad. First, we put the SIM into the phone and activate (by call or other action) according to the situation. We configure the device with SMS assistance.
М***ч –
С***ч –
Quickly set up his SMS teams, entered 3 numbers and changed a little settings, the time took no more than 10 minutes. In response to the command SMS responds with reverse SMS confirmations. I bought a SIM card special for devices from MTS, gave it around 1700 p with an annual subscription, and immediately tied it to my main number so that the SMS coming to it would be forwarded to my main cell number, tied it to the MTS application to see the balance and everything works clearly. At first I wanted to stick a regular SIM with a tariff without a subscription fee there, but the office said that if it did not make outgoing calls within 3 months, it would be turned off. In general, the controller is crazy, works with a bang, let’s see how it will show itself in long-term operation. I took it to open the gate for 1300 p together with the G202 4G power supply.
С***ч –
К***ч –
Good relay, but there is the following joint:
When you call the iPhone, the second alarm occurs after 8 seconds. here I have already seen the feedback and crutch in the form of xxxx # got012 #.
Investigated the issue, LTE and the implementation of VoLTE calls were to blame. That is, if the iPhone (I think advanced androids too) gets a hang-up on the VoLTE, then it makes a handover in 2G/3G and dials there. Perhaps this is not even done by the phone but by the telecom operator.
If you transfer phone calls to 2G or 3G mode, then double dials disappear, but this mode of phone operation is not interesting for obvious reasons.
There is only one output-to set the relay retention time longer than double dialing, for example, the proposed 12 seconds.
Wish to the manufacturer: make an additional parameter-insensitivity time after triggering.
К***ч –
Д***ч –
Beautiful product! For the gate super. Note that these are 2G and virtual operators (Tinkoff, SBER) and Body 2 will not work. And MTS beeline megaphone will be.
Д***ч –
